Shop replacement residential garage door torsion springs in a wide range of wire sizes, inside diameters, spring lengths, and left- or right-hand wind configurations. Select a single torsion spring or a matched pair based on the specifications of your existing garage door spring system.
Click the link HOW TO MEASURE SPRINGS in order to define the product specs. Or get live expert advice to pick your perfect spring or ask about measurements by calling (386) 359-9755
Pick the Wire Size of your Spring
Click to see the list of sizes
- Residential Torsion Spring — 0.1875 Wire Size (With Cones)
- Residential Torsion Spring, Wire Size 0.192 (With Cones)
- Residential Torsion Spring (0.207 Wire Size) (With Cones)
- Residential Torsion Spring — 0.218 Wire Size (With Cones)
- Residential Torsion Spring, Wire Size 0.225 (With Cones)
- Residential Torsion Spring (0.234 Wire Size) (With Cones)
- Residential Torsion Spring — 0.243 Wire Size (With Cones)
- Residential Torsion Spring, Wire Size 0.250 (With Cones)
- Residential Torsion Spring (0.262 Wire Size) (With Cones)
- Residential Torsion Spring — 0.273 Wire Size (With Cones)
- Residential Torsion Spring, Wire Size 0.283 (With Cones)
- Residential Torsion Spring (0.295 Wire Size) (With Cones)
- Residential Torsion Spring — 0.306 Wire Size (With Cones)
In case you do not find the Torsion Specs you need in the list - feel free to click the button and crete a Custom Spring with size and spec you need.

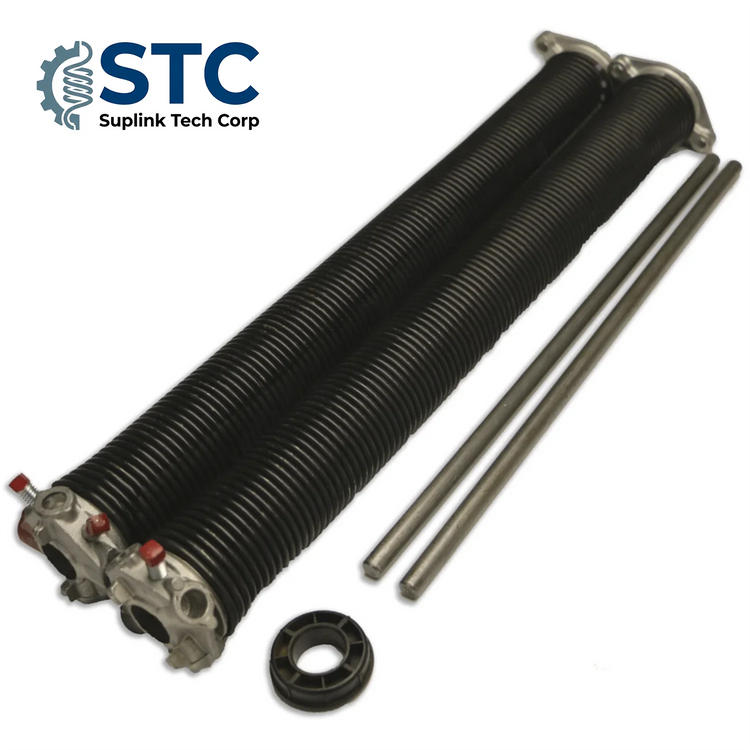

Residential Torsion Springs
Torsion springs sit on a shaft above the door and do the heavy lifting — literally. The stored torque in the coils is what raises and lowers a door that might weigh a few hundred pounds. All ours are oil-tempered USA steel. To get the right replacement you need four things: wire size (calipers or count 10 and 20 coils), inside diameter, coil length without the cones, and wind direction. Left-wound goes on the right side of the bracket. Replace both springs, always, and use real winding bars.
